Miniture Through Bore Slip Ring

Place of Origin : Guangdong, China

Brand Name : OEM

Certification : CE, ROHS

Model Number : FLD-F3-24

MOQ : 1pc

Price : $1

Packaging Details : standard packing with box

Delivery Time : 7-10 days after got the payment

Payment Terms : 100% prepaid

Supply Ability : 10000 Piece/Pieces per month

Guarranty : 1 year

Contact Now

FLD-F3-24 slip ring is a miniature , standard , off-the-shelf series product wih through bore , that uses gold contacts at the rotary interface . Color-coded lead wires are used on both stator and rotor for simplified electtrical connections . Using a 90ºV-groove ring design for each ring . The PSR-Fs slip ring provides smoother running , lower torque , low contact wear rates than competitive slip ring...

Electrical Spec.		Options
Sircuit	24	Flange for set up
Rating voltage	380VAC	The wire exit direction,length is optional
Rating current	2A /Ring,5A,10A by parrelled	Additional connector and the heat shrinkable tube
Insulation resistance	1000M@500VDC	Higher voltage and current capacity
Dielectric strength	600VDC@50Hz	Support for higher speed: 500Rpm
Electrical noise	10mΩ@6VDC,50mA, 5Rpm
Mechanical Spec		Environment
Through bore	3mm	Working temperature	-40℃~+80℃
Speed	300Rpm	Mechanical vibration	MIL-SID-810E
Torque	0.01N.M	Humidity	10% to 90% RH non-condensing
Seal class	IP54	Materials	Lead Free,RoHS compliant
Contact material	Precious Metal:Gold-Gold	CE Certified	YES
Lead Wire	12color AWG#28 Teflon wire
Life	00million revolutions

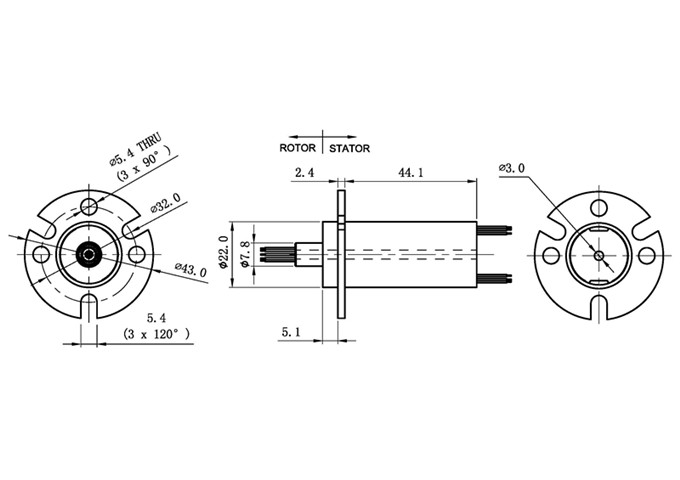

Drawings:

¤ Feature

♦Compact minature design , small size fit for harsh space

♦Moudel design ; Meet the most of requirement

♦Combine slip ring and FORJ

♦Can combine signal and power in smae slip ring

♦Meet the requirement of industrial field

¤ Typical Application

♦Small laboratory

♦Electtrical equipment

♦Medical equipment

♦Robotics

Installation Guide:

1.Main shaft mouted units:
A.Position the slip ring in the desired location and tighten both set screws to the shaft.Maximum torque 25Ib-in(DO NOT OVER TORQUE)
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.Do not constrain wiring such that wire flexing occurs.Doing so will ultimately cause failure(breakage of the wiring)

2.Housing mouted units:
A.Anti-Rotation tap used for connecting the stator of slip ring with the stationary member of euipment
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.

CAUTION:

Because of possible geometric mismatching between the customer's application and the slip ring,'hard mouting'of both ends of the slip ring(i.e.securing the rotor and stator such that there is no floating during operation) is not recommended and may cause premature failure.
