through bore manufacture direct sell Slip Rings

Place of Origin : China

Brand Name : OEM

Certification : CE ROHS

Model Number : FLT080 series

MOQ : 1 pc

Price : $1

Packaging Details : standard carton box

Delivery Time : 1-3 working days after payment depends on quantity

Payment Terms : 100% prepaid

Supply Ability : 5000pcs/week

Delivery Method : DHL/FEDEX/UPS...

Warranty : 1 year

Contact Now

Through Hole Slip Rings Introduction

--This series is specially designed through bore for hydraulic or pneumatic rotating shaft installation,
the through hole is option from 12.7mm,25.4mm,38.1mm,50mm,96mm to 200mm
--Rings combination is available
--Advanced multi-contacting ensures reliable operation with low friction
--Aluminum Alloy housing
--Working speed could be high to 2500rpm
--Protection Grade could be high to IP66
Please contact us, our sales engineers will provide you recommendation or customization.

Specification
Circuits	1-24circuits
Operating Speed	0-500rpm
WorkingTemperature	-20℃~ +60℃
Working Humidity	60%RH or higher
*Electrical:*
Voltage Rating	380VAC/DCor higher
Current Rating	2A/5A/10A/15Aper circuit
Dielectric Strength	≥1000V@50Hz between each circuit
Insulation Resistance	1000MΩ@ 500VDC
ElectricalNoise	1mΩMin
*Mechanical:*
Contact Material	Precious metal
Lead Wire Size	Teflon^®UL
Lead Wire Length	Standard 300mm(11.811inch)
Housing Material	Aluminum alloy
Torque	≤9.25 g·m (for reference )
Protection	IP54 or higher

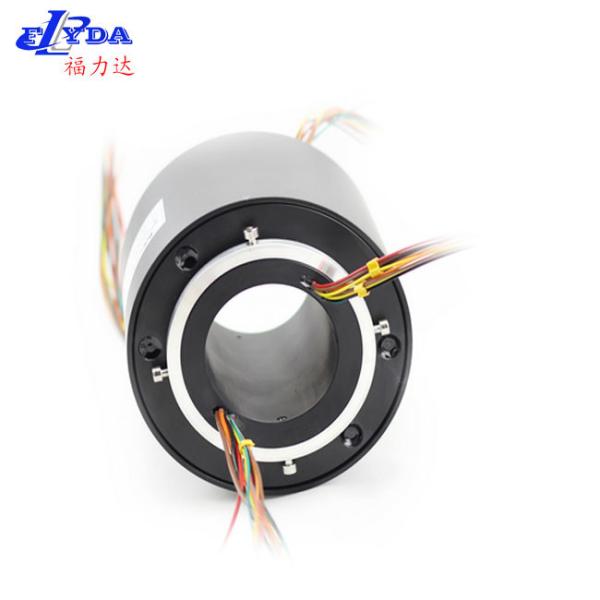

through bore manufacture direct sell Slip Rings

Contact us on wire color codes!

L---The length of through bore slip ring(mm)
Part Number	Current/Circuit	6 circuits	12 circuits	18circuits	24 circuits
FLT080(Innerdiameter60mm)	5A	61	85	109	133
	10A	64	91	118	145
	15A	67	97	127	157
