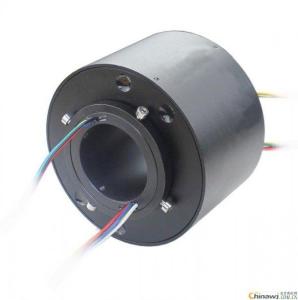

| FL050 Series "Through-bore "slip ring "dia.50mm |
| Make use of advance sheaf brush technology to design and manufacture |
| Suffice 360°unrestrained continuous rotation to transmitting power and / or data |
| Produce modularize |
| Long life maintenance-free operation |
| Electrical data: |
| Lead: | AWG16 and AWG26 Tinning wires,PTEE insulated |
| Standard lead lengths: | 500mm(other lengths on request) |
| Voltage: | 600VAC |
| Insulation Resistance: | ≥1000MΩ/500VDC |
| Dynamic contact Resistance: | 0.01Ω |
| Mechanical Data: |
| Operate Speed: | 0-250rpm continuous |
| Contact material surface: | Brush:silver alloy,Ring:silver-gift copper |
| Bearing: | Nylon steel ball bearing |
| Housing: | ABS Engineering plastics |
| Temperature Rage: | -40Degree to 80 Degree |
| IP: | 51 |
| Description: |
| A slip ring can be used in any electro-mechanical system that requests unrestrained,continuous rotation while transmitting power and / or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface,collector,swivel,or a rotary joint.a Slip ring can improve system performance by simplifying operations and eliminiting damage-prone wires dangling from movable joints. |
| A slip ring are metal rings that provide a continuous electrical connection through brushes on stationary contacts. |
| It's configuration is column type,each ring lies along the durm axis,lkie threads on a bolt. |
| The FL050 use sheaf brush technology which offers several advantages over conventional slip ring contacts,including multiple points of contact per bundle,low contact force per brush,low noise and low contact wear rates.In addition,sheaf brushes do not require lubrication and produce virtually no wear debris. |
| Application: |
| Rotary index tables,machining centers etc industrial machinery |
| Cable reelst,est equipment and machining centers |
| Heavy equipment turrets |
| Packaging machines,magnetic clutches,palletizing machines |
| Process control equipment |
| Rotary sensors,robotics,emergency lighting |
| Display/Medical equipment,Exhibit equipment |
